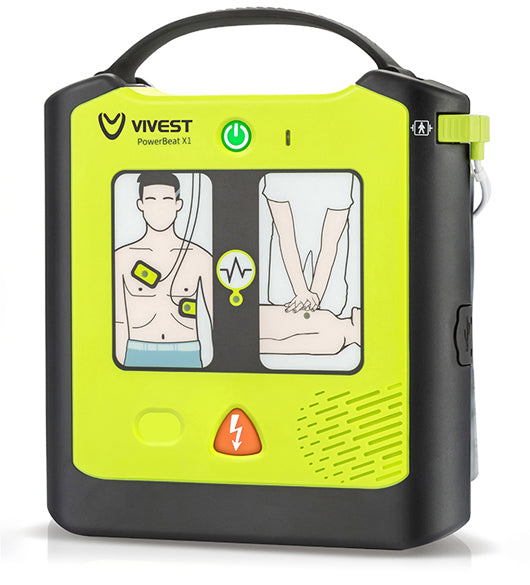

PowerBeat AED X1 Semi-Automatic
The real “mobile” device
Slimline and lightweight means that the PowerBeat X1 AED
can fit into most bags and be transported to various locations.
Accurate diagnosis, clear display
Clear visual images, enhanced further using LED lighting and
loud verbal commands, to guide the user and provide the
patient with the best chance of survival.
Complete reliability
Daily self testing, drop tested to 1.5 metres, IP55 protected
without the need for a carry case and a failsafe button
ensuring the AED is always ready to save lives.
Product highlights
• Slimline and lightweight - H 23.2 x W 20.9 x D 5.9 1.5KG
• Simple audio and visual instruction for the user. One of the easiest to use on the market
• Time to shock 7 seconds
• Battery life of 4 years and capable of up to 200 shocks
• Smart Pads life of 4 years which allow for biphasic shock
• CPR features with metronome
• Algorithm capable of detecting implants such as pacemaker and internal defibrillator
• Automated ECG recording of up to 8 hours
• Daily self testing ensures device is ready for use
• IP55 protects against dust and wet environments
• Drop tested to 1.5 metres
• Multi Language
• Shock button has built in failsafe button to eleviate risk of failure
• Able to identify a pulse and make the decision not to shock
Specifications
Defibrillator
Waveform: Biphasic Truncated Exponential (BTE) Waveform
Impedance Range: 20 - 180Ω
Energy Level:
Adults, energy released at 50Ω impedance: 150J
CPR Coaching: CPR instructions are available,with metronome
and hand placement instructions.
CPR Protocal: Comply with AHA 2020 guideline.
Charge/Discharge Time: The time from the prompt of “Shock
Advised” to when the shock can be performed: 7 seconds
Arrhythmia Analysis
Accuracy: Comply with IEC60601-2-4
Analysis Time: Typically 8 seconds
Controls
Shock Control: Semi-automatic (press the shock button to
deliver energy)
Language Button (PowerBeat X3): Users can switch between
primary and secondary language among various available
language options.
Certification: ISO13485, CE certification
Safety Standard:
IEC 60601-1:2005+A1:2012
IEC 60601-2-4:2010+AMD1:2018
IEC 60601-1-2:2014
IEC 60601-1-12:2014
User Interface
Display: PowerBeat X1 has
114 mm (W)x87 mm (A) graphic panel, while PowerBeat X3 has
5 inches color LCD screen, 105 mm (W)x65 mm (BF),
Resolution: 800x480 pixels
User Guidance: PowerBeat X1 has LED lights, graphic panel
and voice prompt, while Powerbeat X3 has a color LCD screen,
animation, voice and bilingual text prompts.
Volume Adjustment: Volume is adjustable through APP.
Device Status Indicator: Visual and audible indicators help to
monitor the status of the main device, electrodes, and battery.
Flashing green light indicates the device ts normal. Flashing red
light indicates the device is faulty.
Environmental Parameters
Operating/Storage Temperature: 5°C ~ +50°C
One Hour Operating Temperature
Limit (extreme cold): -20°C
Short-term Storage/Transport Temperature:
-40°C~+70C, within one week, with battery and pads uninstalled.
Atmospheric Pressure: 59.4KPa~106KPa
Relative Humidity: 5%~95% (no condensation)
Ingress Protection: IP55
Physical Characteristics
(including handle)
Height: 232mm
Width: 209mm
Depth: 59mm
Weight: 1.5kg (including battery and pads)
Tolerable Impact/Fall Damage: Can withstand free fall
damage from a height of 1.5M onto hard surfaces.
Accessories (Battery)
Type: Lithium manganese dioxide (Li/MnO2} battery (nonrechargeable), 12V/3000mAh
Capacity: At 20°C±2°C, the new battery can discharge
200±10 times at 150J.
Operation Life (standby): 4 years (typical)
Low Battery Status: A battery that indicates low battery
can still be used ≥10 times at 150J.
Accessories (Pads)
Pads: Suitable for adults.
Operation Life (standby): 4 years (typical)
Cable Length: 1.140.1m
Storage Space: Pads can be stored in the space at the
back of the device.
Data Storage
Memory Type: Internal digital memory
ECG/Event Storage: At least 8 hours of ECG and event/
incident recording.
Self-test Data Storage: Up to 10 years
Communications
Communications: USB interface
Overall Device
Date of Production: See label at the bottom
of main device.
Warranty: 8 years.
