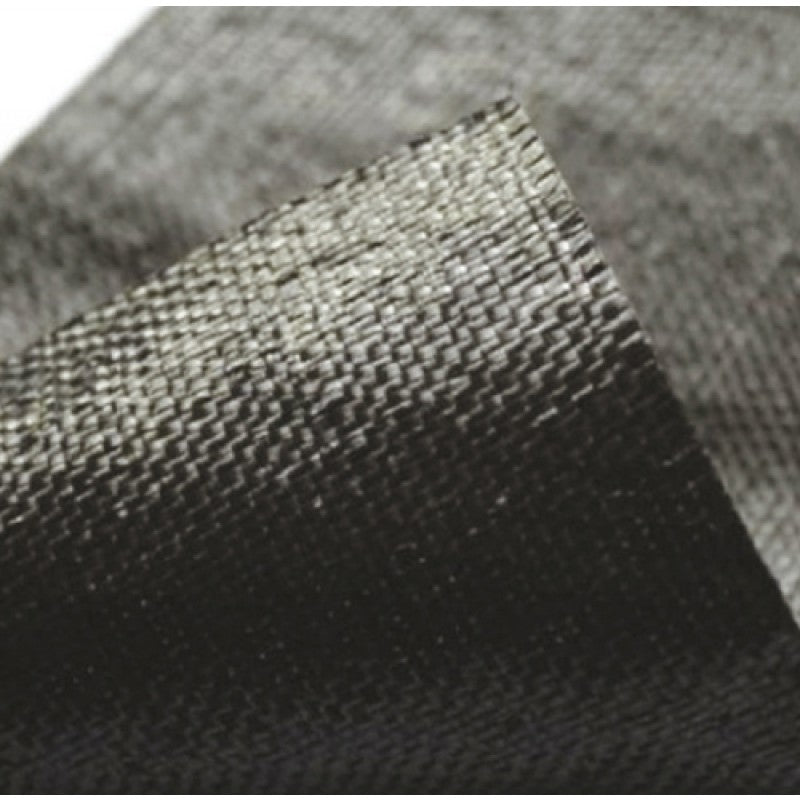

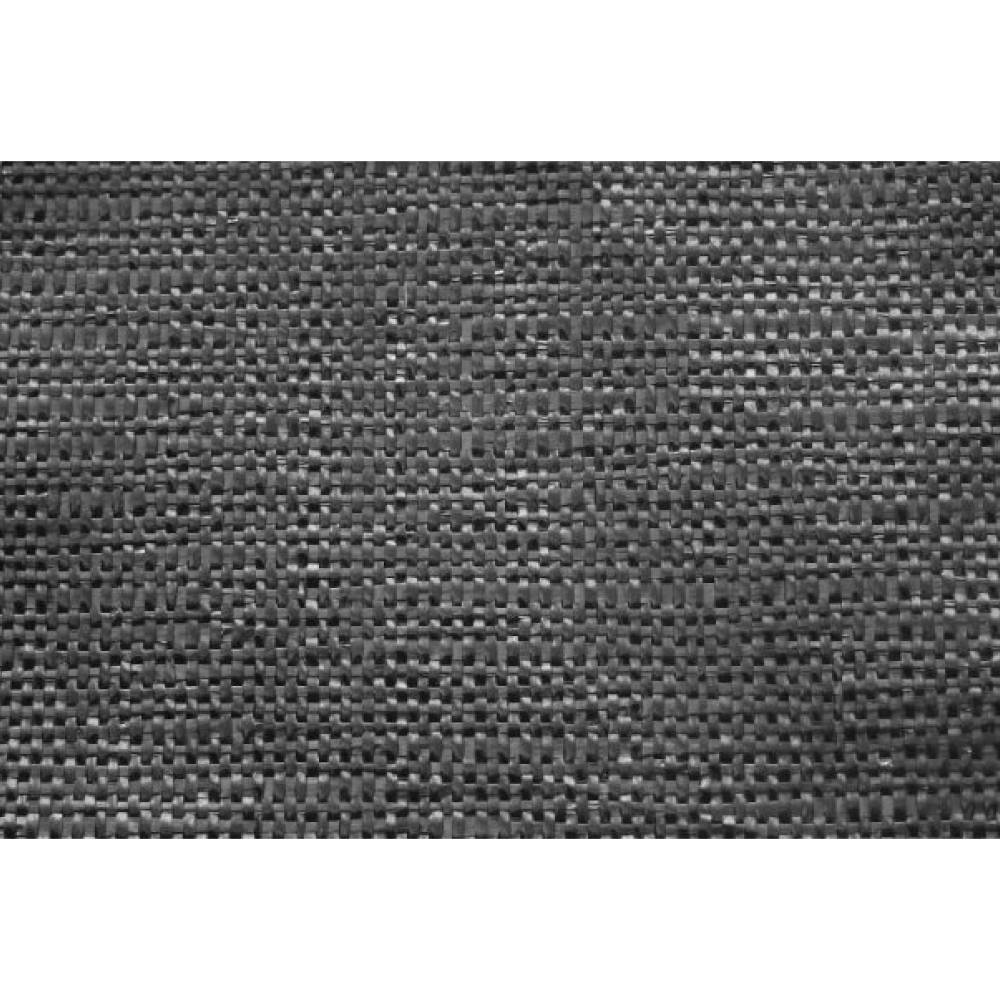

Woven Geotextile Membrane

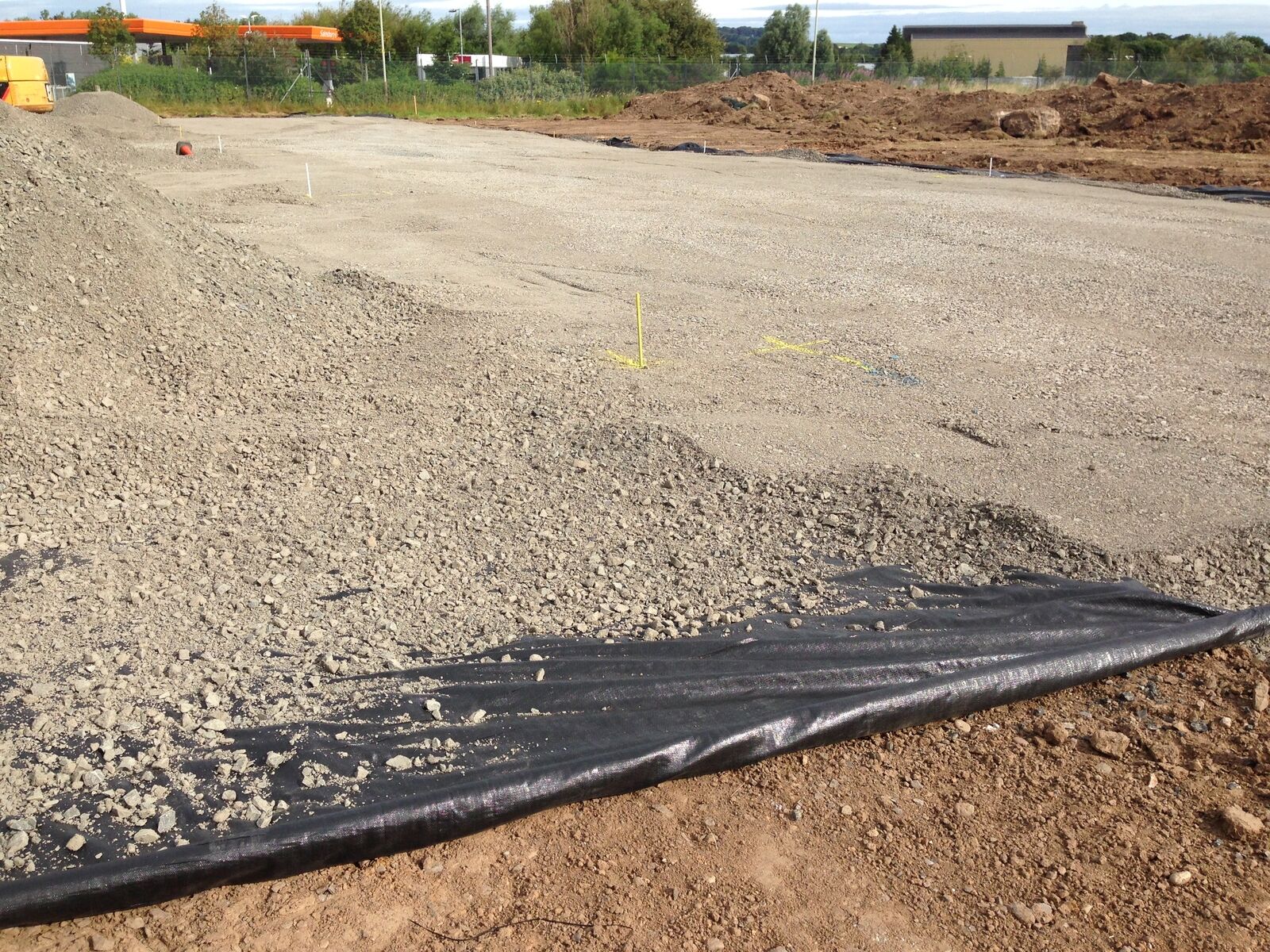

The use of Geotextile fabric can reduce the cost of land drains and road drainage systems. Using Geotextile fabrics as a filter, medium and large granular material can be used without fines in trench drains. This could reduce the trench dimensions and eliminate the need for extra installations such as carrier pipes and manholes.
Landfill Separation:
Using Geotextile fabrics to separate different quality fill can allow permeable and non permeable layers. This prevents vertical flow of unwanted leachate and allows natural horizontal drainage.
Erosion control:
River embankments, canals, beaches and harbour areas.
Properties:
Tensile Strength – MD EN ISO 10319 kN/m 17
Tensile Strength – XD EN ISO 10319 Kn/m 11
Elongation at break - MD EN ISO 10319 % 18
Elongation at break - XD EN ISO 10319 % 14
CBR Puncture Resistance EN ISO 12236 N 1500
Water-flow normal to the plane EN ISO 11058 l/m2.s 15
Characteristic Opening (pore) size EN ISO 12956 ?m 240
Thickness under 2 kPa EN 964/1 mm 0.40
Delivery
We aim to dispatch all orders placed by 1pm the same day.
We offer 2 delivery services:
Standard 3-5 working day - £4.95
Next Working Day - £7.50
Please note that some items on our site do come direct from the supplier and may not be available on Next Day Delivery.
Collection
We offer a click and click service from our Dundee Depot.
We aim to have orders ready to collect within 24 hours. Please note that this may not be possible if the item is not held in stock and needs to come on from the supplier.
Description
Woven Geotextile Membrane
The use of Geotextile fabric can reduce the cost of land drains and road drainage systems. Using Geotextile fabrics as a filter, medium and large granular material can be used without fines in trench drains. This could reduce the trench dimensions and eliminate the need for extra installations such as carrier pipes and manholes.
Landfill Separation:
Using Geotextile fabrics to separate different quality fill can allow permeable and non permeable layers. This prevents vertical flow of unwanted leachate and allows natural horizontal drainage.
Erosion control:
River embankments, canals, beaches and harbour areas.
Properties:
Tensile Strength – MD EN ISO 10319 kN/m 17
Tensile Strength – XD EN ISO 10319 Kn/m 11
Elongation at break - MD EN ISO 10319 % 18
Elongation at break - XD EN ISO 10319 % 14
CBR Puncture Resistance EN ISO 12236 N 1500
Water-flow normal to the plane EN ISO 11058 l/m2.s 15
Characteristic Opening (pore) size EN ISO 12956 ?m 240
Thickness under 2 kPa EN 964/1 mm 0.40
