Product Details

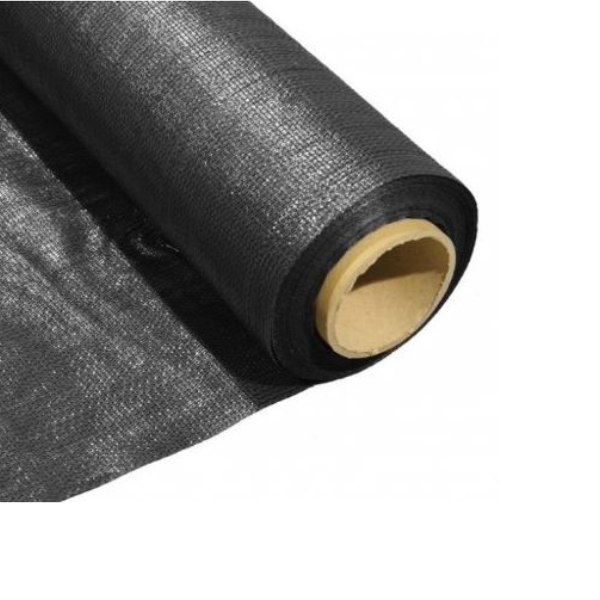

Woven Geotextile Membrane
4.5m x 100m Roll Geotextile 609 is one of the largest selling general purpose geotextiles in the UK. Designed and manufactured to conform to the old Department of Transport & Highways specification for road and earthworks separation.

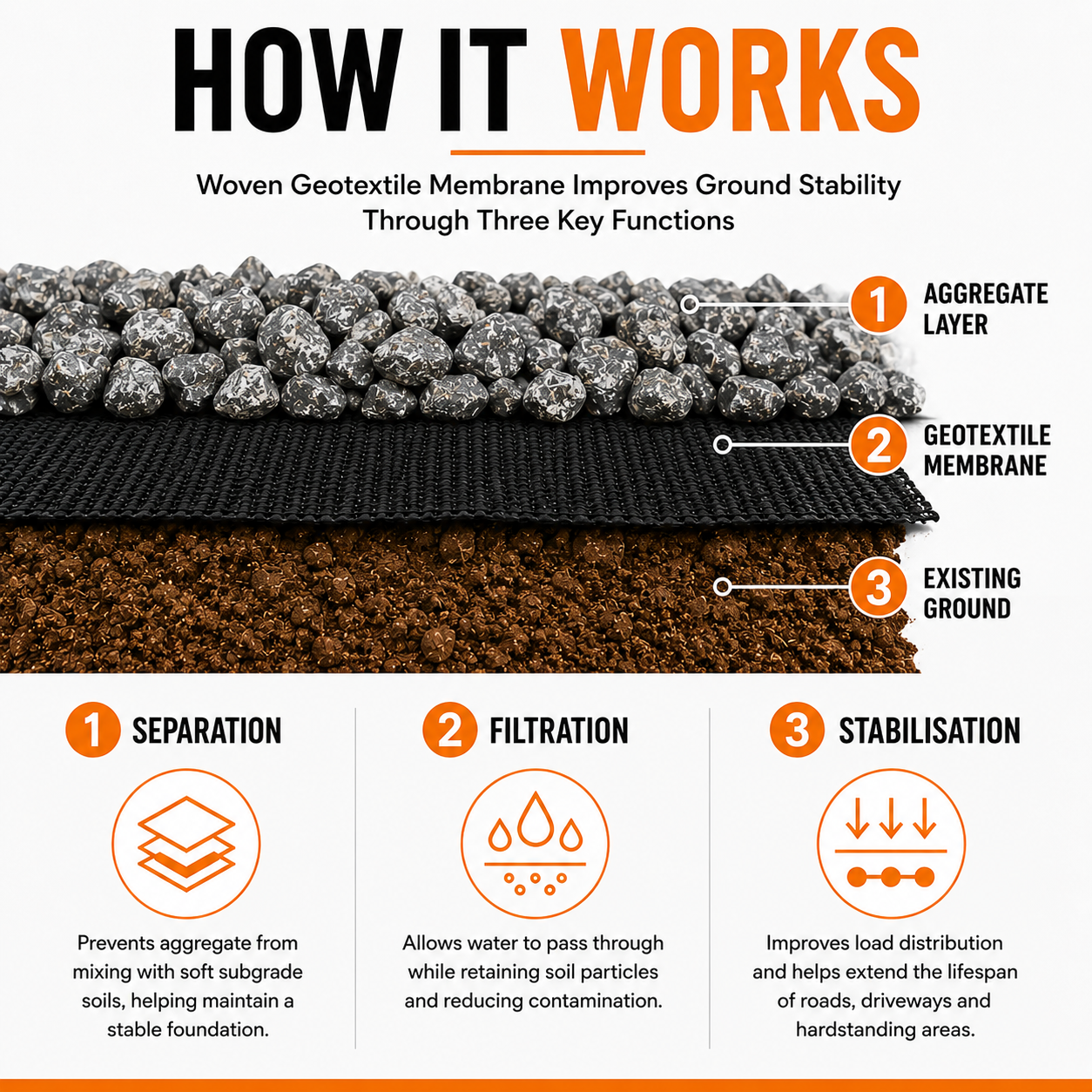

609 provides a cost effective solution for separation and filtration for the general building and domestic markets.

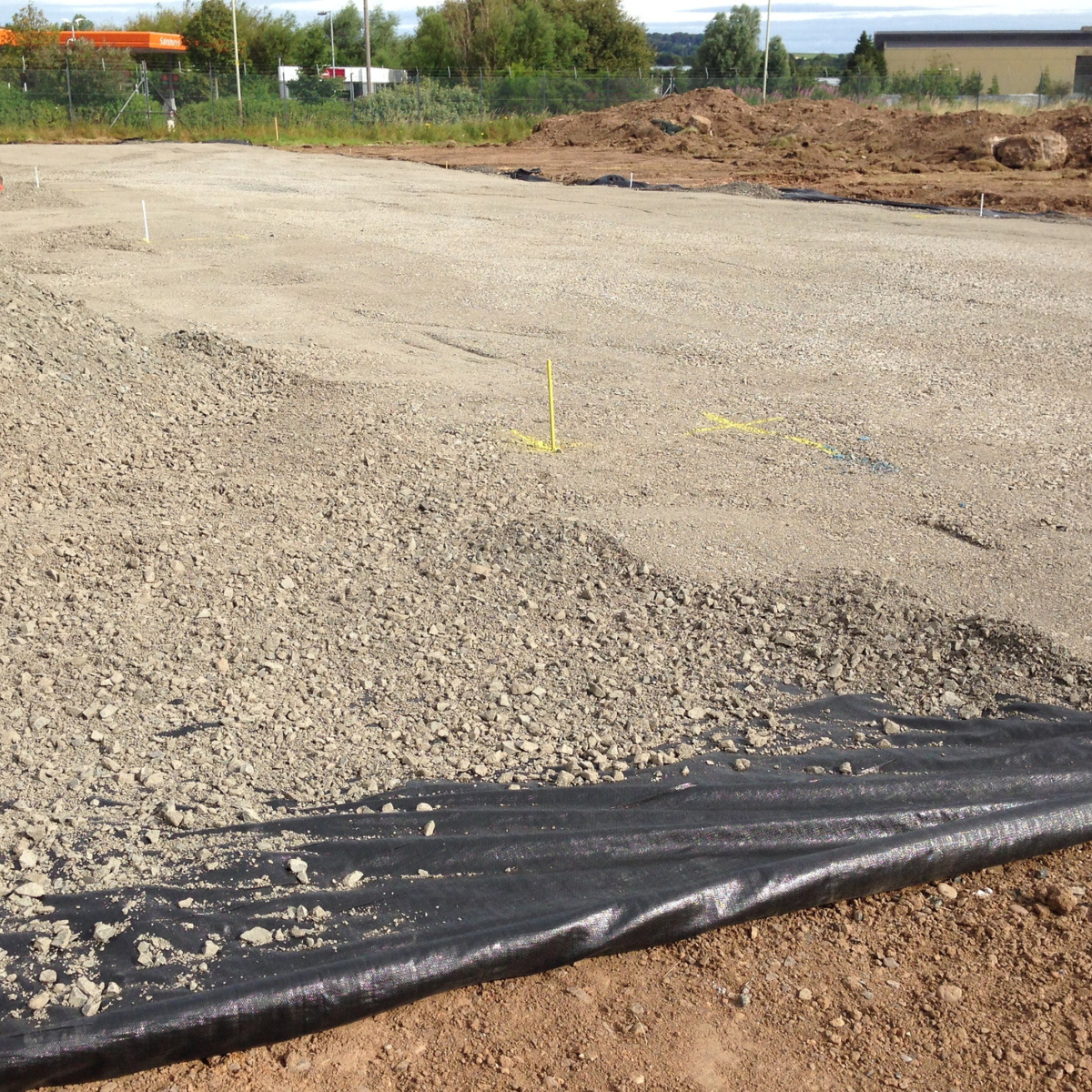

Typical applications include Separating/Strengthening - layer under access roads and areas of hard standing Separation – layers under stone foundations for new buildings Separation – layers under new roads, car parks & industrial areas Separation – granular fill from sub soils and other fill types Reinforcement - Resists stresses or reduces deformations Erosion Control
Tenchincal Details
- Tensile strength (MD) 18.00kN/m
- Tensile strength (CMD) 10.00kN/m
- Elongation at max load (MD) 25.00%
- Elongation at max load (CMD) 25.00%
- Dynamic perforation resistance 19.00mm
- CBR puncture resistance 1500.00N
- Dynamic cone drop 19.00mm
- Water permeability 16.00L/m².s
- Characteristic opening size 300.00μm
- Weight 75.00g/m²

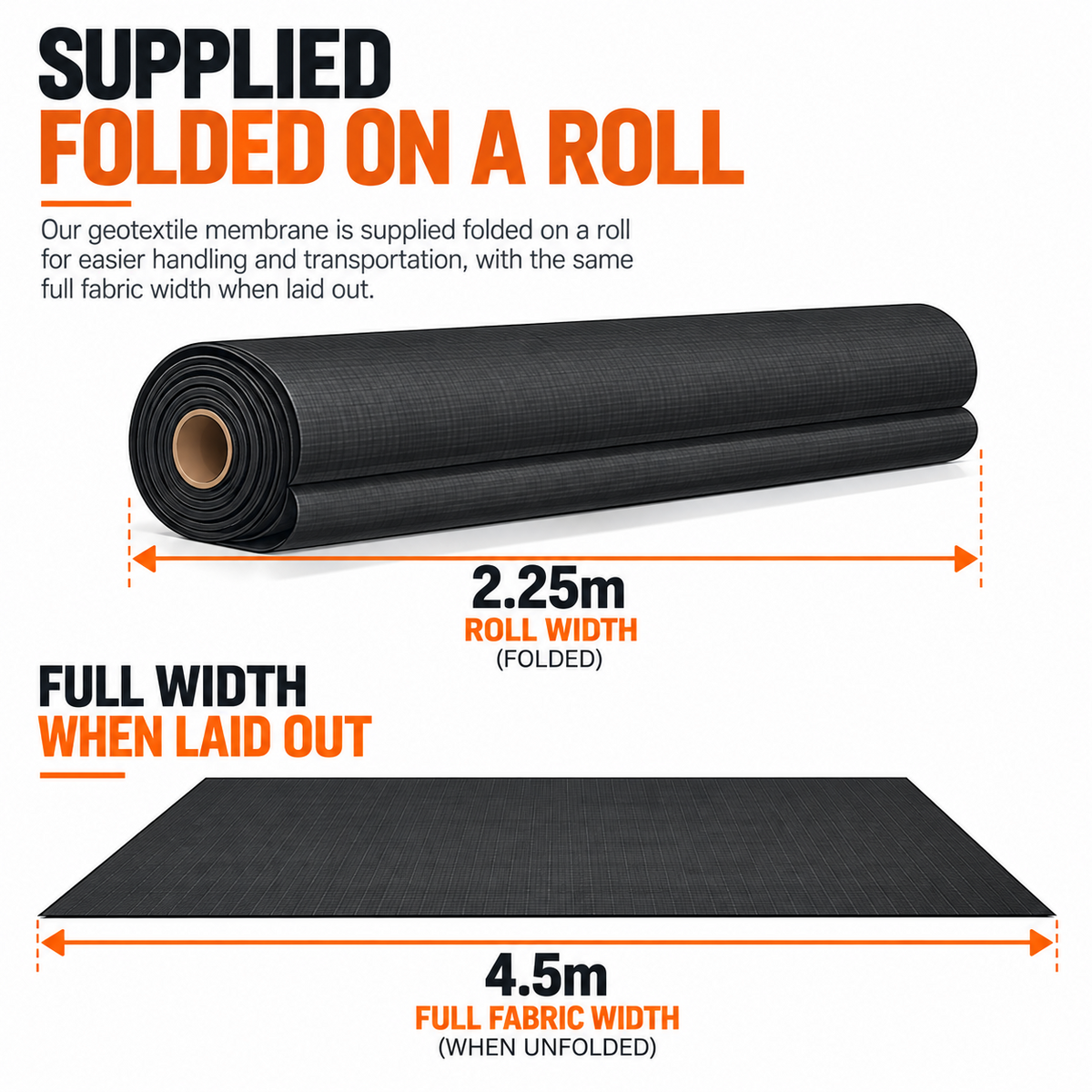

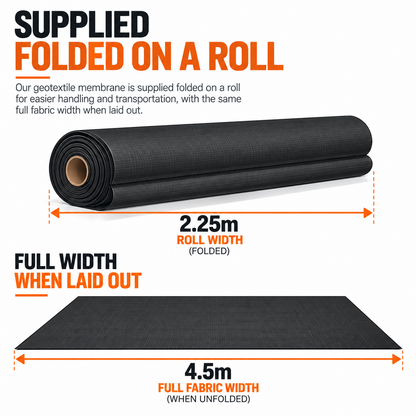

- Roll width 4.50m length 100m
Delivery
We aim to dispatch all orders placed by 1pm the same day.
We offer 2 delivery services:
Standard 3-5 working day - £4.95
Next Working Day - £7.50
Please note that some items on our site do come direct from the supplier and may not be available on Next Day Delivery.
Collection
We offer a click and click service from our Dundee Depot.
We aim to have orders ready to collect within 24 hours. Please note that this may not be possible if the item is not held in stock and needs to come on from the supplier.
