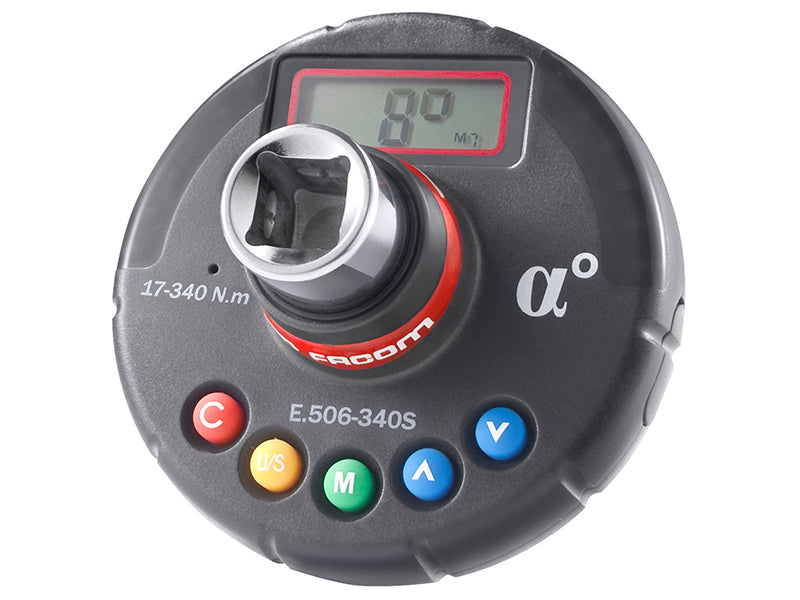

The Facom E.506-340S Torque & Angle Adaptor for use in confined spaces to provide torque or angle increments. The electronic display prevents reading errors and tightening is indicated via LEDs and a buzzer. It has 9 torque and/or angle values that can be pre-set, a 50-result memory, a locking keypad, and a magnetised tool (ratchet) fastening.

It has angle tightening that eliminates friction issues related with torque tightening. The movement, and hence faster tension, is defined by the screw pitch and tightening angle. Torque/angle tightening is performed in 2 steps. By pre-torquing to approach the parts and eliminate interface faults. Then tightening at a specific angle. Proper assembly tension prevents the fastener from loosening or breaking.

Supplied in a plastic case with a calibration certificate and 2 x AAA-LR03 1.5V Batteries.

Specification:
Torque Accuracy: ± 3°.
Angle Accuracy: ± 2°.
Capacity: 68-340nm
Measuring Units: Nm, lbf. ft, lbf.in, kg.cm and deg.
Measuring Mode: Peak or Follower.
