Klima Underwood Heating Foilmat Installation video

Video will open in a new window

[isdntekvideo]

KLIMA UNDERWOOD HEATING FOIL MAT

** 10 YEAR WARRANTY - CE APPROVED **

Electric floor heating foil for under floating Wooden floors. Only 0.3mm thick for installation directly beneath wood or laminate

The Klima Under Wood Heating Foil Mat is designed for laying under a floating wooden floor such as a Laminate or Engineered click together type Wooden flooring system. The installation does not require any glue or adhesives, but it must be installed on top of a PS Insulation type material that has a minimum thickness of 5mm.

• 10 year Warranty on Klima Foil Mat
• CE Approved
• 28 Years Supplying the Trade

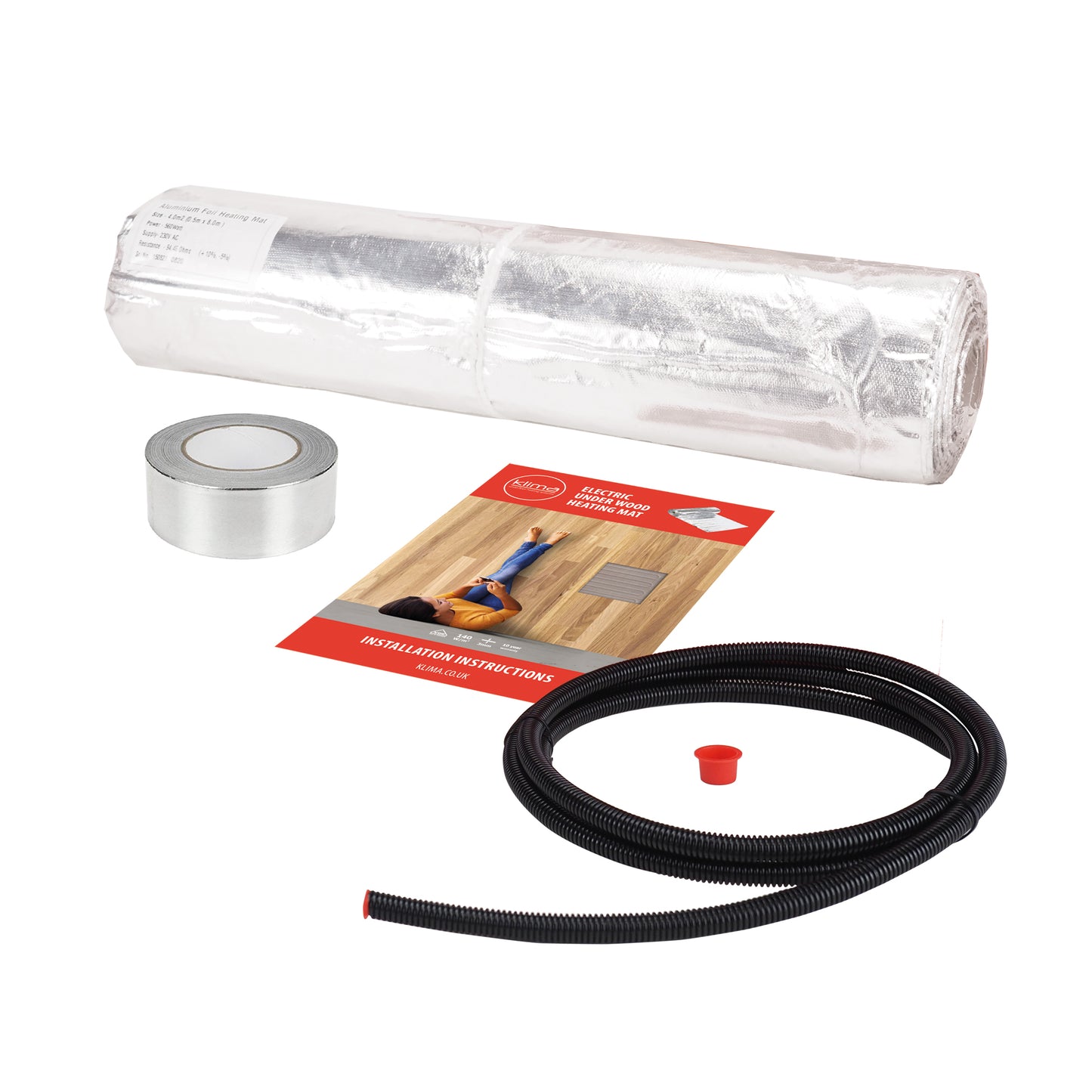

Kit Contents

• Klima Heating Foil mat
• Installation instructions
• Flexible Sensor Tube

Additional components required

• Thermostat and Floor Sensor
• PS Insulation minimum thickness 5mm

Full technical support is provided by our experienced UK technical assistance team so you can ensure you purchase the correct system. We’ll assist you during installation and we’re here to help with any issues following installation.

Benefit

– Even cost-effective heat spread across the entire surface of the wooden floor

– Easy and quick installation

Please Note

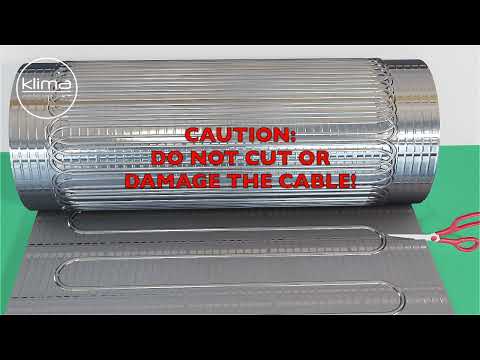

The heating cable CANNOT be cut, however the aluminum mat can be cut (making sure the heating cable is not damaged) and shaped to fit awkward shaped areas.

A Heat Loss calculation is always recommended to determine whether the system can be used as a primary heat source.

We recommend that you check with your floor covering supplier for compatibility.

You also require minimum 5mm PS insulation

Specification for Foil mat

AVAILABLE SIZES:

1 m²  (500mm x 2m)
2 m²  (500mm x 4m)
3.0 m²  (500mm x 6m)
4 m²  (500mm x 8m)
5 m²  (500mm x 10m)
6 m²  (500mm x 12m)
7 m²  (500mm x 14m)
8 m²  (500mm x 16m)
9 m²  (500mm x 18m)
10 m²  (500mm x 20m)

Dont forget your Thermostat if Required, WIFI or Digital if Buying Mats Only.

C16 WIFI THERMOSTAT

The C16 Wi-Fi is an advanced Thermostat Controller for use with Electric Underfloor Heating Systems.
Simple Install the App on your smart device to control the heating system remotly using this WiFi Thermostat or the Thermostat can operated as a stand alone unit.

Wifi App Control
Programming Period: 7 individual day or Separate 5-day (weekday) and 1-day/1-day (Saturday/Sunday) programming with 6 or 4 separate time/temperature periods per day.
Permanent user setting retention during power loss.
The thermostat has an intelligent recovery function that brings your room temperature to the set temperature at exactly the pre-set time by turning on the Heating earlier.
An optional type of control for different heating application including room thermostat; floor thermostat or room thermostat with floor limitation.

KLIMA TOUCH CONTROL THERMOSTAT

Advanced Smart Digital Thermostat with full 7-day programmable options.
Complete with touch button display and full colour LCD display

Easy to use Digital Thermostat for Electric Underfloor Heating
Responsive touch control buttons
8 built in background colours
2-Pole safety power switch, ON/OFF control output
Large clock display
Three control mode available
Output shutdown by means of heat limitation for the protection of wooden floors
7-Days programmable
Keep user setting during power loss
Day/Night switch save energy
