KLIMA UNDERFLOOR HEATING MAT KIT WITH DIGITAL THERMNOSTAT

**VDE Certified - 10 Year Manufacturer's Guarantee (T&Cs Apply) - FREE UK Tech Support**

Suitable for Use in Any Room
IPX7
Eco Setting & Warm-Up Mode
10 Year Manufacturer's Guarantee (T&Cs Apply)
Self-Adhesive Base for Easy Installation
Comfort & Primary Heat Depending on Insulation
Suitable for Under Tile, Stone, Ceramic or Similiar

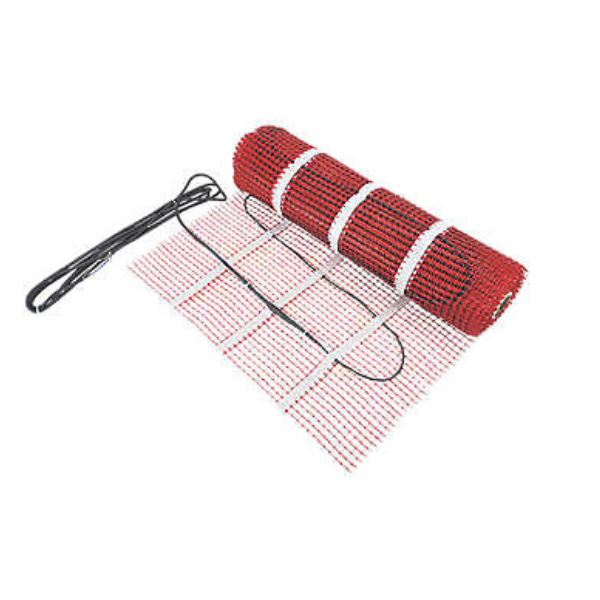

The Klima Underfloor Heating Mat is a heating system designed for under a tile or similar floor finish.
The mat is only 3.55 mm thick and can either be laid into a layer of flexible tile adhesive or a compatible self-leveler.
The heating cable is fixed evenly over the fibreglass mesh (inter-loop distance approx. 7cm) and has a standard capacity of 150 W/m2.

The Mat is fully earthed sheathed and is suitable for wet areas when used in conjunction with a dedicated RCD.

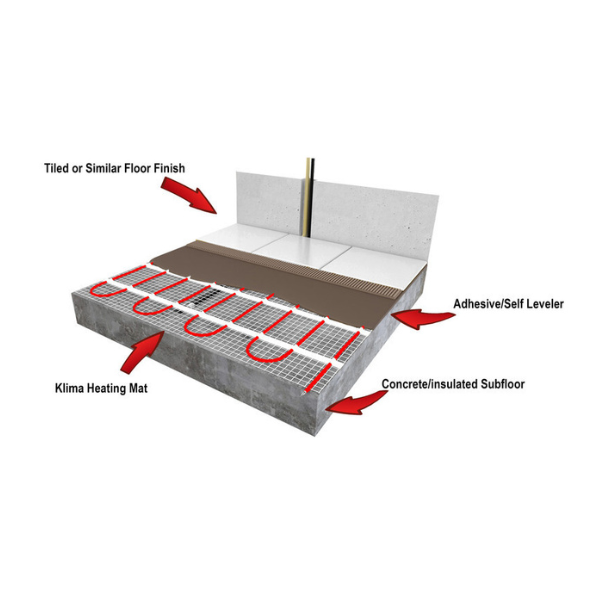

The Underfloor Heating mat system has a self adhesive backing and is designed to be laid directly on an insulated concrete floor or Thermal board.
The system can be laid onto a prepared plywood floor with either a 1-2mm bed of adhesive being applied first to the ply subfloor or a Thermal board being placed over the plywood floor, secured with supplied fixings.
The mat install method can also be adapted for use with a Vinyl floor finish - check with your flooring manufacturer

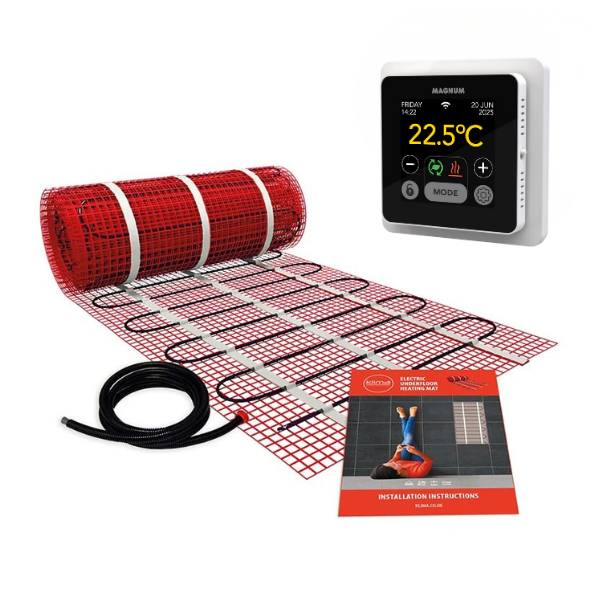

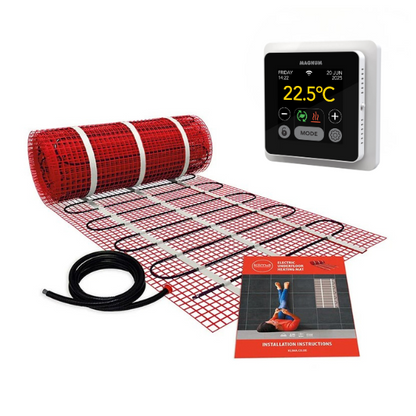

KIT CONTENT:
Underfloor Heating Mat
Instruction Manual
10mm flexible conduit pipe for floor sensor
C16 WIFI FLOOR HEATING THERMOSTAT

AVAILABLE SIZES:

1 m²  (500mm x 2m)
1.5 m²  (500mm x 3m)
2 m²  (500mm x 4m)
2.5 m²  (500mm x 5m)
3.0 m²  (500mm x 6m)
3.5 m²  (500mm x 7m)
4 m²  (500mm x 8m)
4.5 m²  (500mm x 9m)
5 m²  (500mm x 10m)
6 m²  (500mm x 12m)
7 m²  (500mm x 14m)
8 m²  (500mm x 16m)
9 m²  (500mm x 18m)
10 m²  (500mm x 20m)

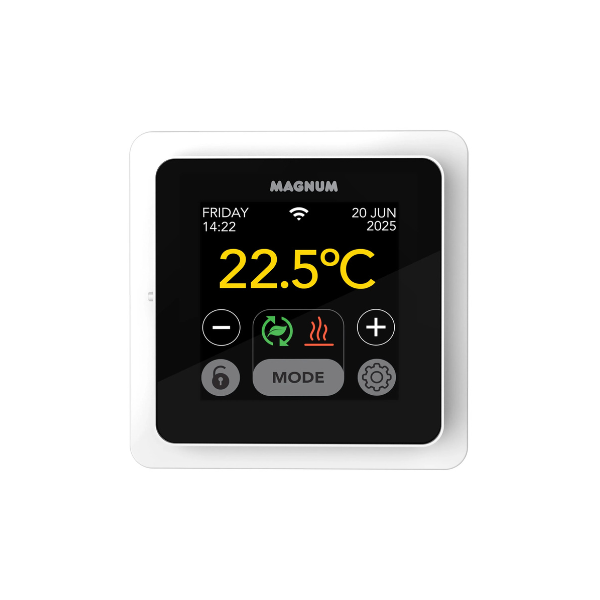

C16 WIFI FLOOR HEATING THERMOSTAT

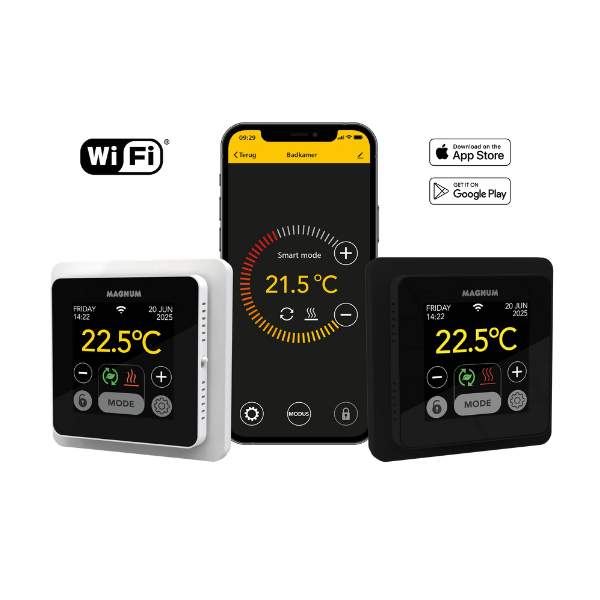

The C16 Wi-Fi is an advanced Thermostat Controller for use with Electric Underfloor Heating Systems.
Simple Install the App on your smart device to control the heating system remotely using this WiFi Thermostat or the Thermostat can operated as a stand alone unit.

• Wifi App Control
• Programming Period: 7 individual day or Separate 5-day (weekday) and 1-day/1-day (Saturday/Sunday) programming with 6 or 4 separate time/temperature periods per day.
• Permanent user setting retention during power loss.
• The thermostat has an intelligent recovery function that brings your room temperature to the set temperature at exactly the pre-set time by turning on the Heating earlier.
• An optional type of control for different heating application including room thermostat; floor thermostat or room thermostat with floor limitation.

TECHNICAL DETAILS

Voltage: 230V – 50/60 Hz
Maximum load: 16 Amp. / 230V
Temperature range: 5°C ~40°C
Cover: IP 21
Standard colour: Polar white (RAL 9010)
Approvals: CE
Manufacturer: Saswell
